Kiwis K16I Fuse Box
Engineered for vehicle lighting systems, the K16I is designed to be the perfect fuse box for computer controlled lights. The unit combines high fuse density with a compact, water-resistant enclosure.
Compact Entirely Sealed Unit
Palm-sized compact package with big capabilities. Highly water-resistant and built to handle under-body installs with ease.
Easy Access
Top lid pops off. Fuses go in. Six M3 screws secure the lid and create a strong seal using a silicone foam gasket.

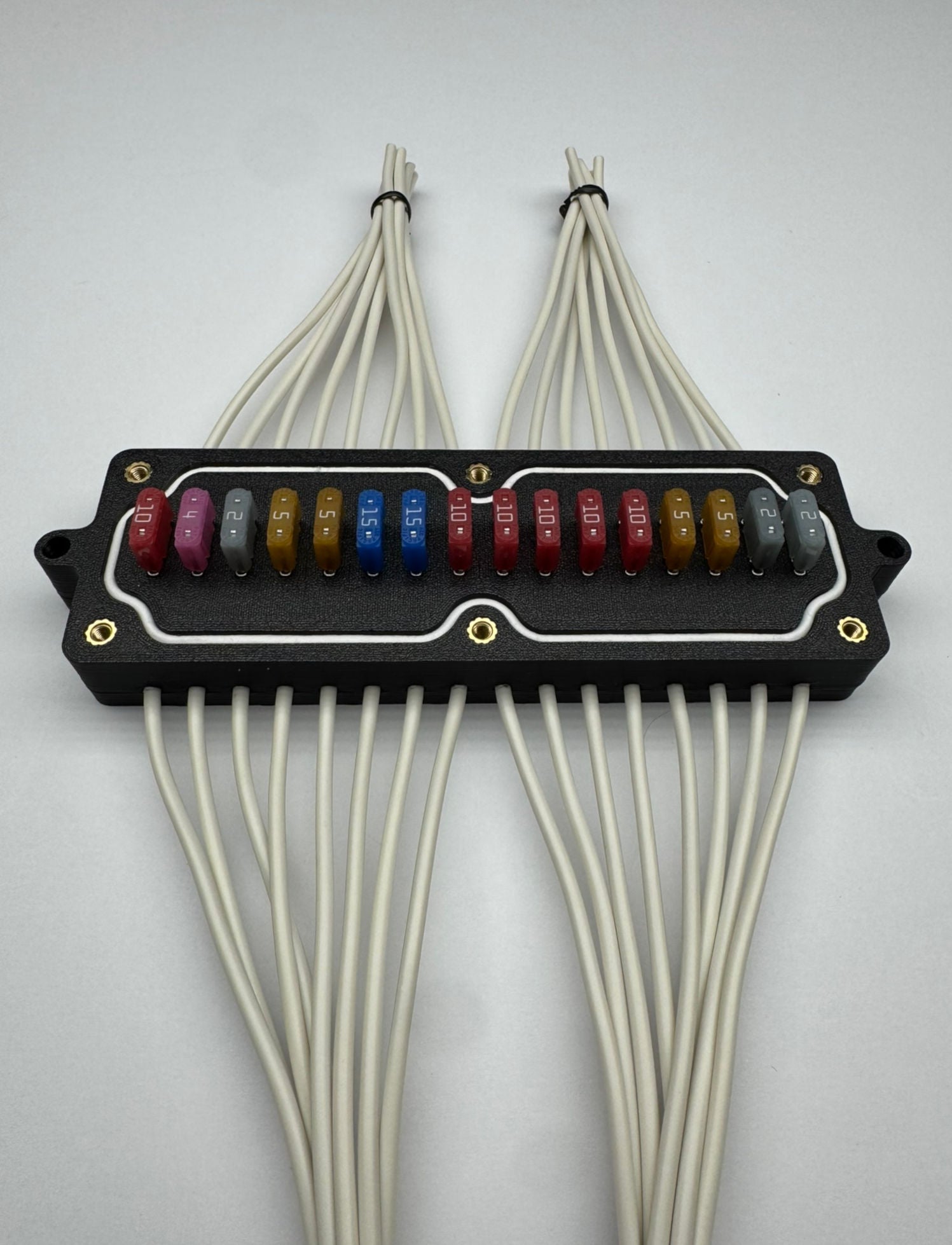

16 Independent Circuits
One of the highest density in-line fuse boxes on the market. Perfect for clean looking compact circuits.
Built Tough
The K16I's bottom plate not only seals the unit but also firmly "locks" the wires in place. Wires are supported by the box housing, not the internal circuit. All materials used are heat-resistant and flame-retardant.
The package you have been sent is 100% FREE!
We strongly believe in our product and want you to try it no fees attached. Use the unit any way you like, on anything you want. If you have any questions, feel free to reach out! Listed below are the technical specs of the K16I.
Specs are rated to ensure reliability in warm environments with little to no airflow
- Circuits: 16 Independent
- Fuse Type: ATM Blade
- Maximum Amperage Per Box: 96A (combined continuous load)
- Maximum Amperage Per Circuit: 12A (loads fused at 15A)
- Maximum Voltage: 32V DC
- Wire Spec: 4in 16AWG 19/29 Stranded Bare Copper Wire PVC Jacket.
- Water Resistance: High resistance to splashing, spraying, rinsing, and momentary shallow submersion.
- Flame Resistance: UL94 V-0 rated housing materials and
SAE-J1128 GPT rated wiring. The unit is flame retardant and self extinguishing.
-Box Dimensions Excluding Wires : 6" x 1.75" x 1.1" (Length, Width, Height). Measured in inches.
