K24I Fuse Box
$104.99
Sale price
$104.99
Regular price

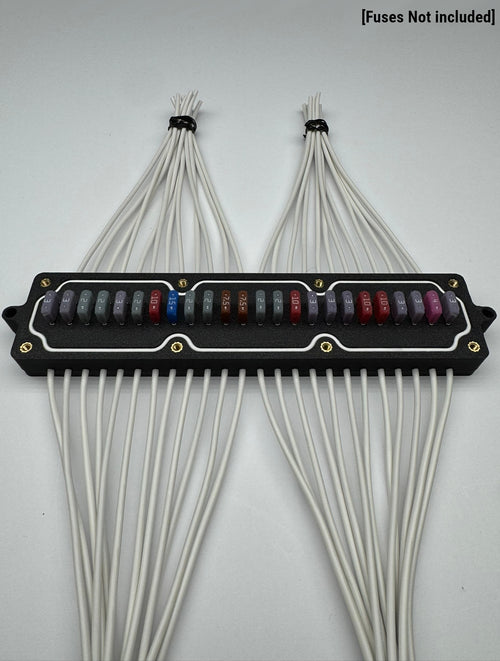

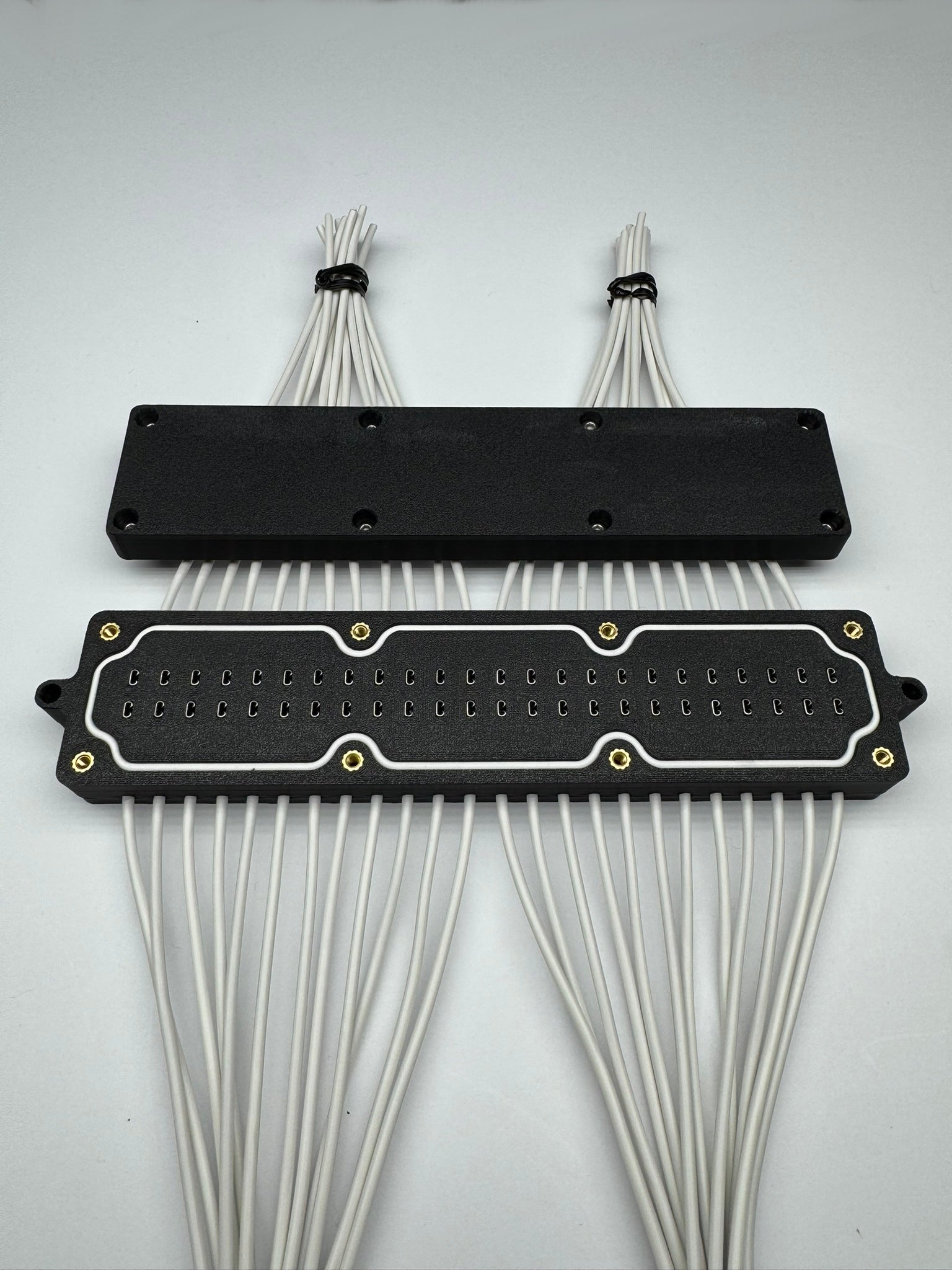

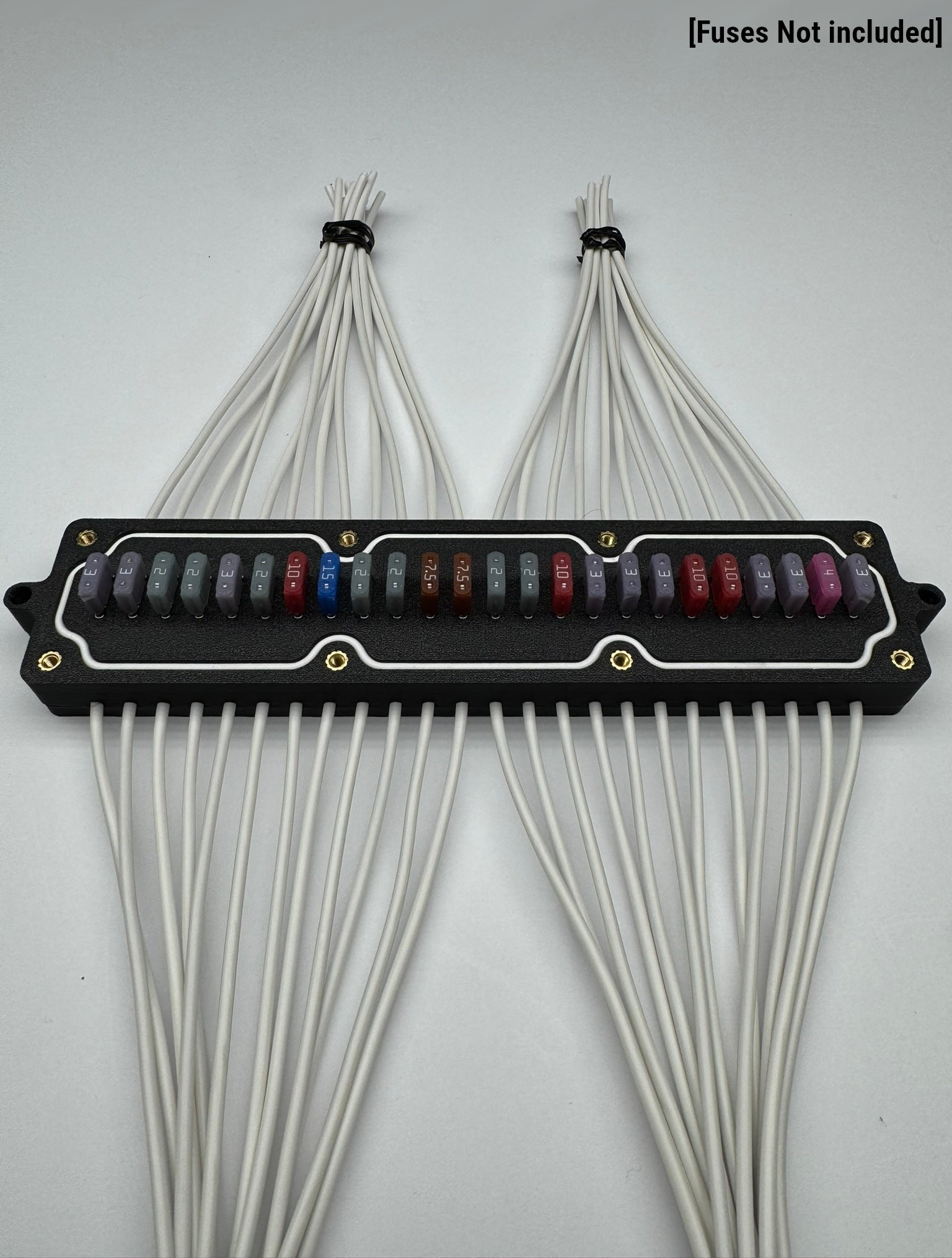

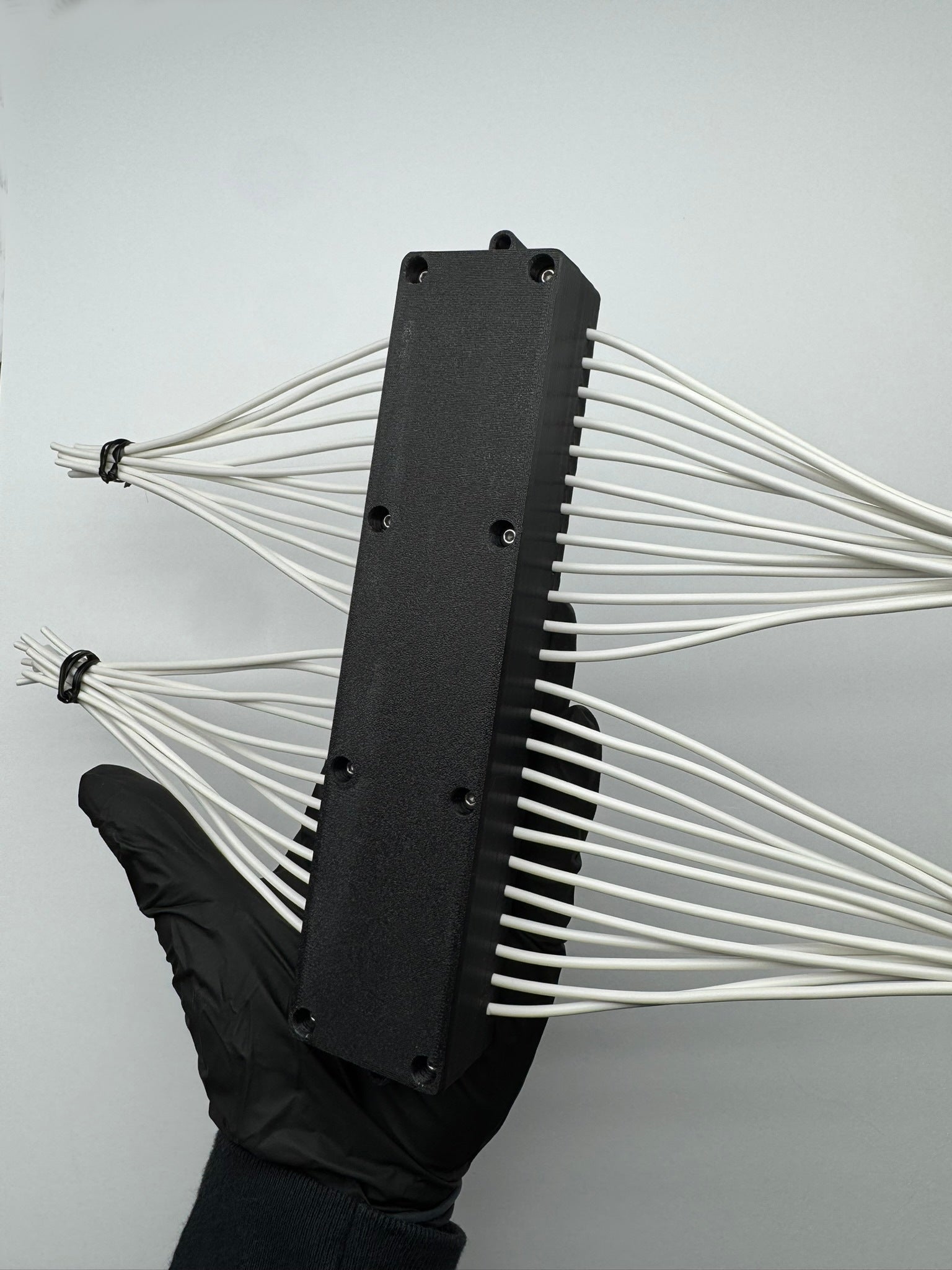

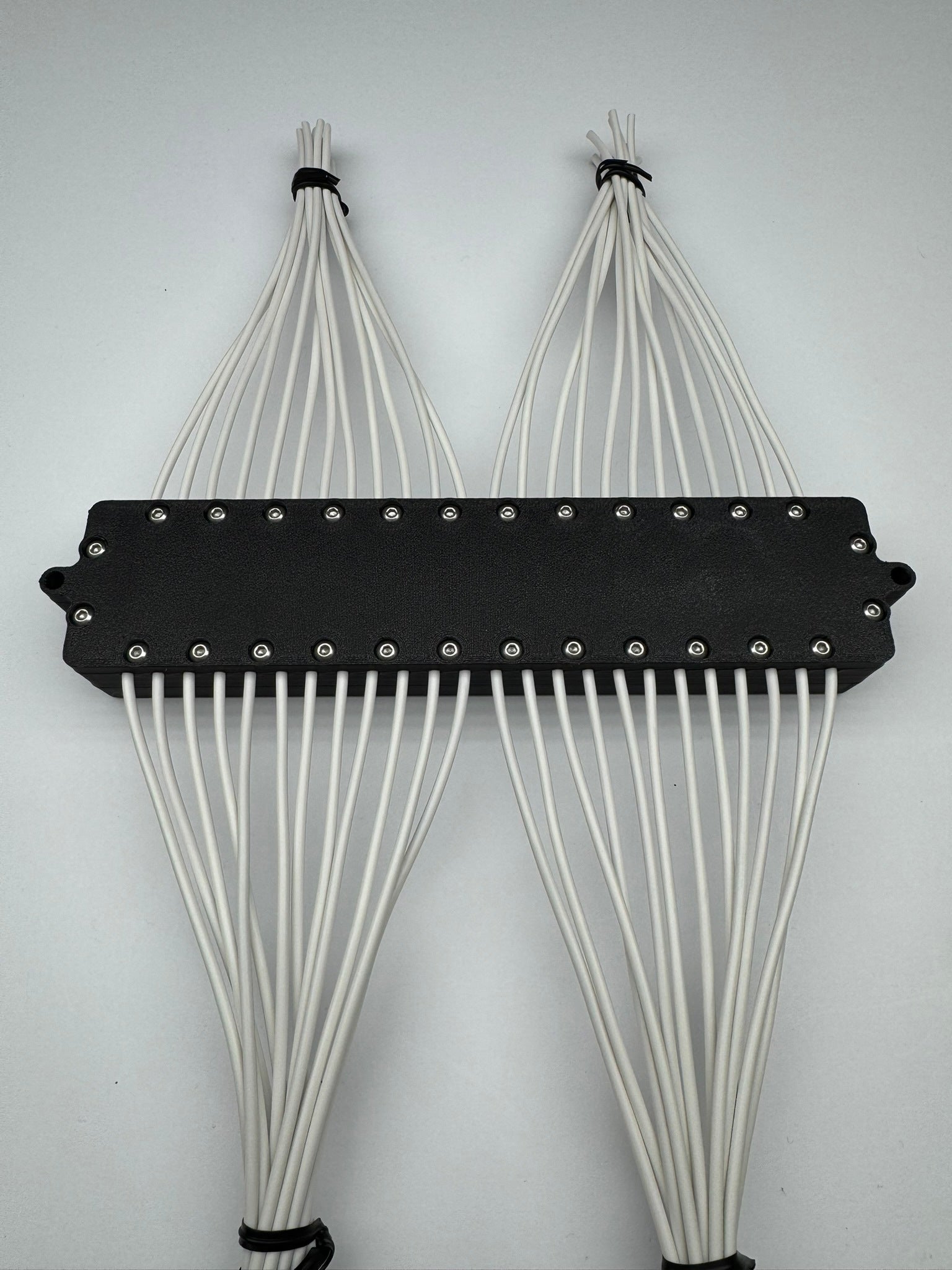

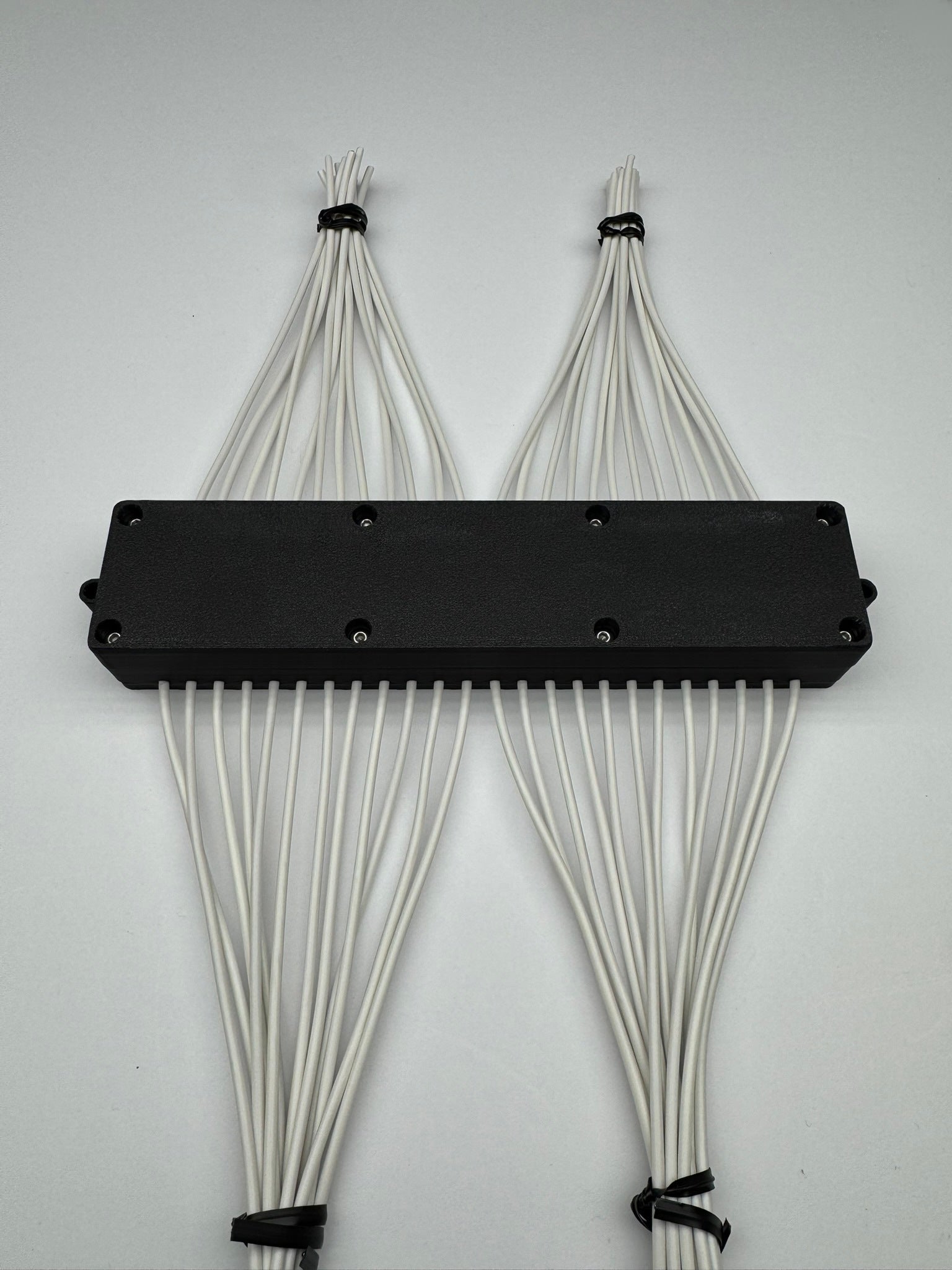

Kiwis K24I is our largest standard fuse box offering. Engineered for the most demanding systems, the K24I provides massive in-line fuse capacity in a compact water-resistant package. The secure lid allows easy fuse access and a strong seal against water and grit. The bottom plate both seals the unit and "locks" the wires in place. Wires are supported by the box housing, not the internal circuit. All materials used are temperature-resistant and flame-retardant.
Specs are rated to ensure reliability in warm environments with little to no airflow
-
Circuits: 24 Independent
-
Fuse Type: ATM Blade
-
Maximum Amperage Per Box: 96A (combined continuous load)
-
Maximum Amperage Per Circuit: 12A (loads fused at 15A)
-
Maximum Voltage: 32V DC
-
Wire Spec: 6in 16AWG 19/29 Stranded Bare Copper Wire PVC Jacket.
-
Water Resistance: High resistance to splashing, spraying, rinsing, and momentary shallow submersion.
-
Flame Resistance: UL94 V-0 rated housing materials and SAE-J1128 GPT rated wiring. The unit is designed to be flame retardant and self extinguishing.
-
Box Dimensions Excluding Wires : 8.375 " x 1.75" x 1.1" (Length, Width, Height). Measured in inches.
